Platform Scales

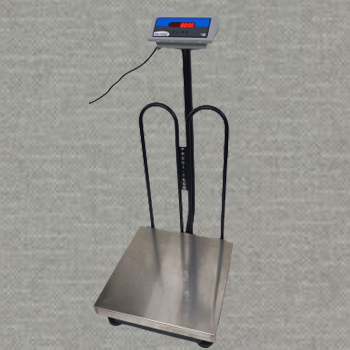

Platform Scale Model : PF - 500


MODEL CAPACITY ACCURACY PLATFORM SIZE
500-505 50kg 5g 500X500
500-1010 100kg 10g 500X500
600-505 50kg 5g 600X600
600-1010 100kg 10g 600X600

Features :

  • ➢ Light weight general purpose platform scale
  • ➢ Available in 50 kg and 100 kg capacities only.
  • ➢ Commonly used economic platform scale
  • ➢ All optional accessories available

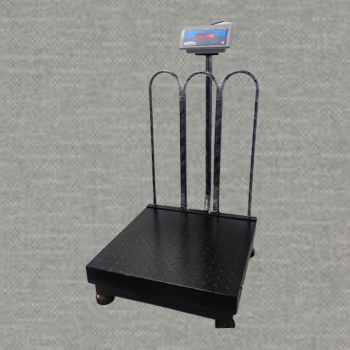

Platform Scale Model : PF - 600


MODEL CAPACITY ACCURACY PLATFORM SIZE
600-2020 200kg 20g 600X600
600-2020-C 200kg 20g 600X600
600-3050 300kg 50g 600X600
600-3050-C 300kg 50g 600X600
600-5100 500kg 100g 600X600
600-5100-C 500kg 100g 600X600

Click here to View Accessories

Features :

  • ➢ Sturdy platform scale for general purpose
  • ➢ Available up to 500 kg only
  • ➢ 100% safety margin and well calculated structure design for the continuous usage
  • ➢ Useful for all types of industries
  • ➢ All optional accessories available

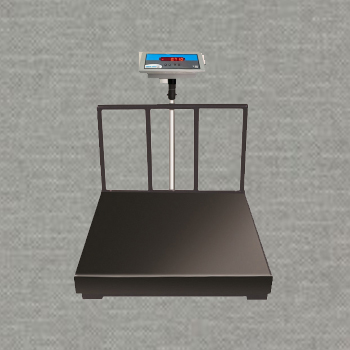

Platform Scale Model : PF - 750


MODEL CAPACITY ACCURACY PLATFORM SIZE
750-3050 300kg 50g 750X750
750-6100 600kg 100g 750X750

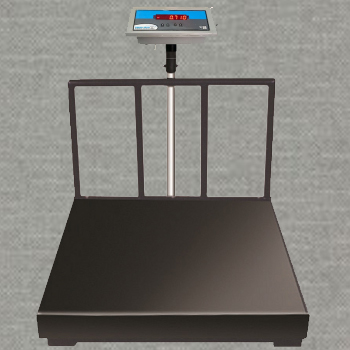

Platform Scale Model : PF - 900


MODEL CAPACITY ACCURACY PLATFORM SIZE
900-6100 600kg 100g 900 x 900
900 - 9200 900kg 200g 900 x 900


Features of Platform Scale Model : PF - 750 and PF - 900 :

  • ➢ Platform designed using single jumbo type sensor
  • ➢ Well balanced structure
  • ➢ Available up to 900 kg
  • ➢ Very useful for weighing heavy but general load.
  • ➢ All optional accessories available

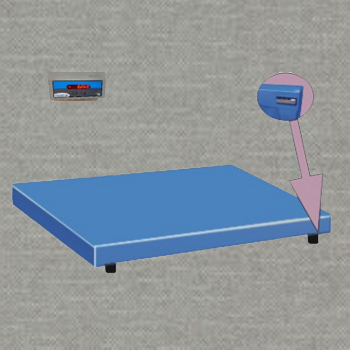

Platform Scale Model : H2


MODEL CAPACITY ACCURACY SIZE
H 2-5100 500kg 100g 1000 x 1000
H 2-1200 1000kg 200g 1000 x 1000
H 2-1200 1000kg 200g 1200 x 1200

Features :

  • ➢ Four load cell design
  • ➢ Load cell fixed on the top weighing platform itself with adjustable mounting legs
  • ➢ All wiring and junction box housed on the top frame itself
  • ➢ Very useful for transferring heavy and big platform scale from one place to another
  • ➢ Indicator can be offered wall mounted or on the separate tripod stand
  • ➢ Maintenance free design
  • ➢ All optional accessories available

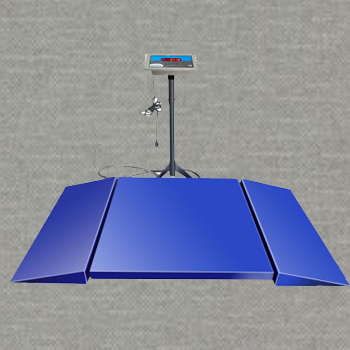

Platform Scale Model : LP4


MODEL CAPACITY ACCURACY SIZE
LP4-5100 500kg 100g 1000 x 1000
LP4-1200 1000kg 200g 1000 x 1000

Features :

  • ➢ Four load cell design
  • ➢ Load cell fixed on the top weighing platform itself with adjustable mounting legs
  • ➢ All wiring and junction box housed on the top frame itself
  • ➢ Indicator can be offered wall mounted or on the separate tripod stand
  • ➢ Maintenance free design
  • ➢ Ramp on both sides makes it very useful for the weighing trolley, drum, wheel chair, etc.
  • ➢ One side ramp also can be offered on request.
  • ➢ All optional accessories available

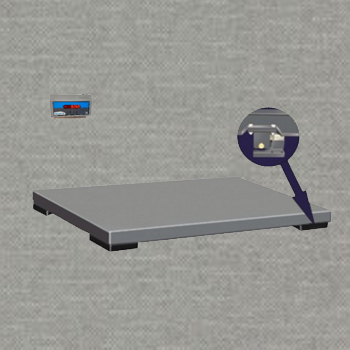

Platform Scale Model : HDS


MODEL CAPACITY ACCURACY SIZE
HDS-5100 500kg 100g 1000 x 1000
HDS-1200 1000kg 200g 1200 x 1200
HDS-2500 2000kg 500g 1500 x 1500
HDS-5200 5000kg 2000g 1500 x 3000
MODEL CAPACITY ACCURACY SIZE
HDS-5100 500kg 100g 1000 x 1500
HDS-1200 1000kg 200g
HDS-2500 2000kg 500g
HDS-3100 3000kg 1000g
MODEL CAPACITY ACCURACY SIZE
HDS-1200 1000kg 200g 1500 x 2000
HDS-2500 2000kg 500g
HDS-3100 3000kg 1000g
HDS-5200 5000kg 2000g
MODEL CAPACITY ACCURACY SIZE
HDS-2500 2000kg 500g 1500 x 3000
HDS-3100 3000kg 1000g
HDS-5200 5000kg 2000g
MODEL CAPACITY ACCURACY SIZE
HDS-2500 2000kg 500g 2000 x 2000
HDS-3100 3000kg 1000g
HDS-5200 5000kg 2000g
MODEL CAPACITY ACCURACY SIZE
HDS-2500 2000kg 500g 2000 x 3000
HDS-3100 3000kg 1000g
HDS-5200 5000kg 2000g
HDS-1200 1000kg 200g 1500 x 1500
HDS-5200 5000kg 2000g 1500 x 1500
HDS-5200 5000kg 2000g 1500 x 1000
HDS-1500 1500kg 500g 1200 x 1200
HDS-1500 1500kg 500g 1200 x 1500
HDS-1500 1500kg 500g 1500 x 1500

Features :

  • ➢ Four load cell design
  • ➢ Separate load cell mounting block for heavy and huge platform
  • ➢ Top platform is separate and bolted on the four mounting blocks
  • ➢ Any size and shape of platform can be offered
  • ➢ Indicator can be offered wall mounted or on the separate tripod stand
  • ➢ The platform can be placed in the pit for the application of surface level platform scale
  • ➢ Mounting block is designed to take care of heavy impact & jerks while loading and unloading
  • ➢ In case of pit we can offer foundation frame also, so that the level, gap and other things can be taken care properly and precisely.
  • ➢All optional accessories available

Click here to View Accessories

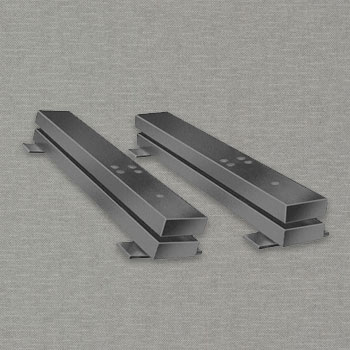

Platform Scale Model : BS2


MODEL CAPACITY ACCURACY SIZE
BS2- 50 50kg 10g 18" BARS
BS2-100 100kg 20g 18" BARS
BS2-300 300kg 50g 2' BARS
BS2-500 500kg 100g 2' BARS

Features :

  • ➢ Two load cell design
  • ➢ The bars are available separate as well as a “C” type structure
  • ➢ “C” type design makes the system more accurate and easy to use.
  • ➢ It can be used as portable scale
  • ➢ Once the use is over you can hang it on the wall so that floor space is saved when not in use.
  • ➢ Available up to 2’ long bars only. In case of higher capacity and size you can use BS4 model

Platform Scale Model : BS4


MODEL CAPACITY ACCURACY SIZE
BS4-1000 1000kg 200g 1M BARS
BS4-2000 2000kg 500g 1M BARS

Features :

  • ➢ Four load cell design
  • ➢ The bars are available separate as well as a “C” type structure
  • ➢ “C” type design makes the system more accurate and easy to use.
  • ➢ It can be used as portable scale
  • ➢ Once the use is over you can hang it on the wall so that floor space is saved when not in use.
