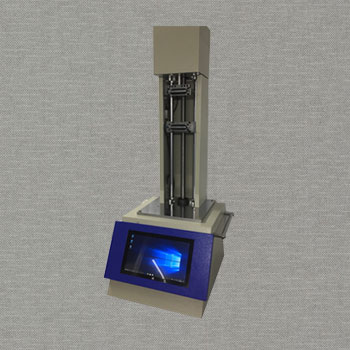

Tensile and Compression Testing Machine

Preci-Tech Weighing System has been one of the leading innovators in the field of Weighing System and Automation. Our Tensile Testing system is another proud addition in our product range.

Features :

  • ➢ Robust design as per IS Standard
  • ➢ Result Repeatability.
  • ➢ Ease of Operation.
  • ➢ Choice of Grip as per Application.
  • ➢ Optional RS232/USB connection to PC.
  • ➢ Option to convert mechanical testing to electronic testing machine.
  • ➢ Cost Effective and Low maintenance.
  • ➢ Preci-Tech Warranty and Support.
  • ➢ 20 X 4 LCD display.
  • ➢ Option for in built Window 10 Tablet PC.
  • ➢ Variable speed from 0 to 500 mm/min.
  • ➢ Servo Motor and drive.
  • ➢ Single and double Ball Screw Design.
  • ➢ User friendly Software for data recording with live graph.
  • ➢ Test report in required format for sending to the customer.
  • ➢ Digital reading for Max Load and Elongation on Test Completion.
  • ➢ Auto Stop and Auto Tare Functionality.


MODELS AVAILABLE FOR THE FOLLOWING RANGE OF TESTING :

Max. Load : 2kg - 3000kg
Least count : 0.5g – 1kg
Distance measurement : 10mm - 1000mm
Least Count in distance : 0.01mm – 1mm
Variable speed from 0 to 500 mm/min
Servo Motor and drive
Single and double Ball Screw Design
